OMNI-A0098 ALARIS  Antennas

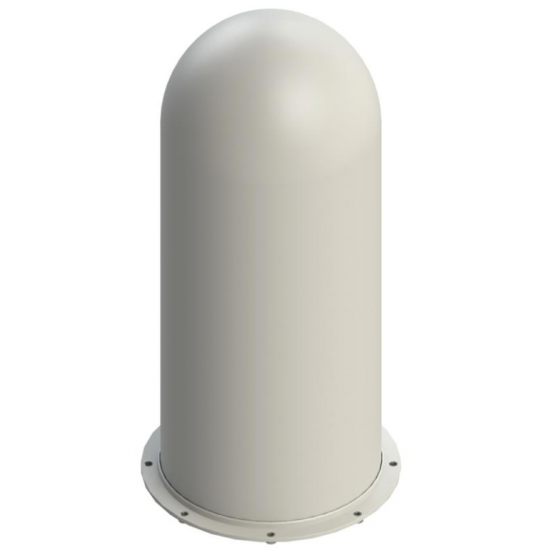

This vertically polarised omni-directional antenna consists of an active antenna array, covering 20 to 6000 MHz

Les avantages du OMNI-A0098 -

Frequency range :20-6000 MHz

Polarization Linear, vertical

RF power rating Receive only

Connector type N-type female

Input voltage (via coaxial cable.) 13 – 24 VDC

Mechanical:

Height 730 mm x 350 mm

Weight < 8.5 kg

Operating temperature -40 ºC to +65 ºC

Storage temperature -55 ºC to +85 ºC

UV stability Yes

Operational rainproof Yes

Operational humidity 95% at +25 ºC and +55 ºC

Wind velocity (no ice) 180 km/h

Sand and dust resistant Yes
